2 groups of castings for Stuart's very impressive Number 1live steam vertical engine for sale. Many people's favourite engine.

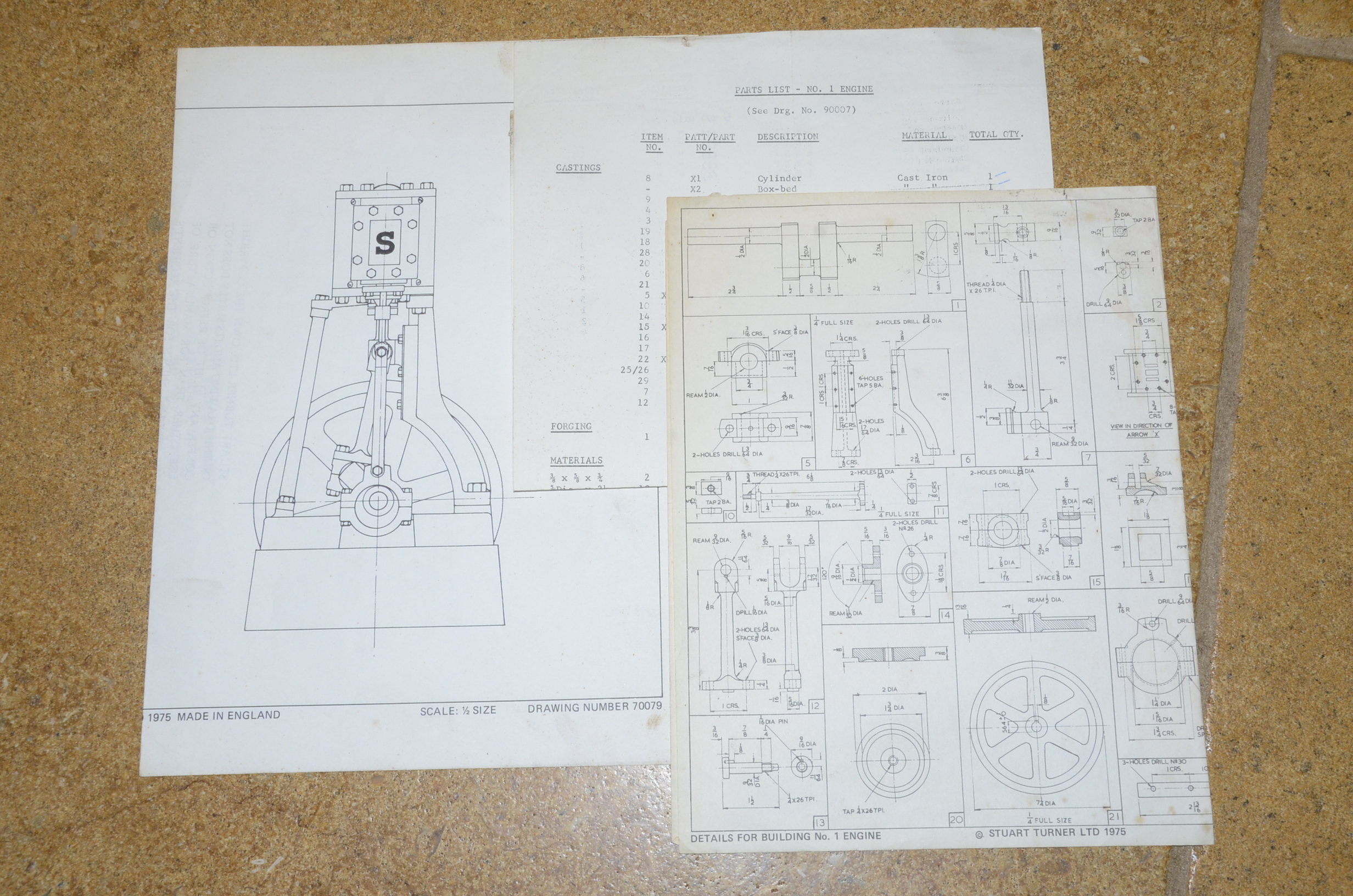

We believe both are original Henly-On-Thames Stuart castings. Both come with drawings.

TOP PHOTOS:

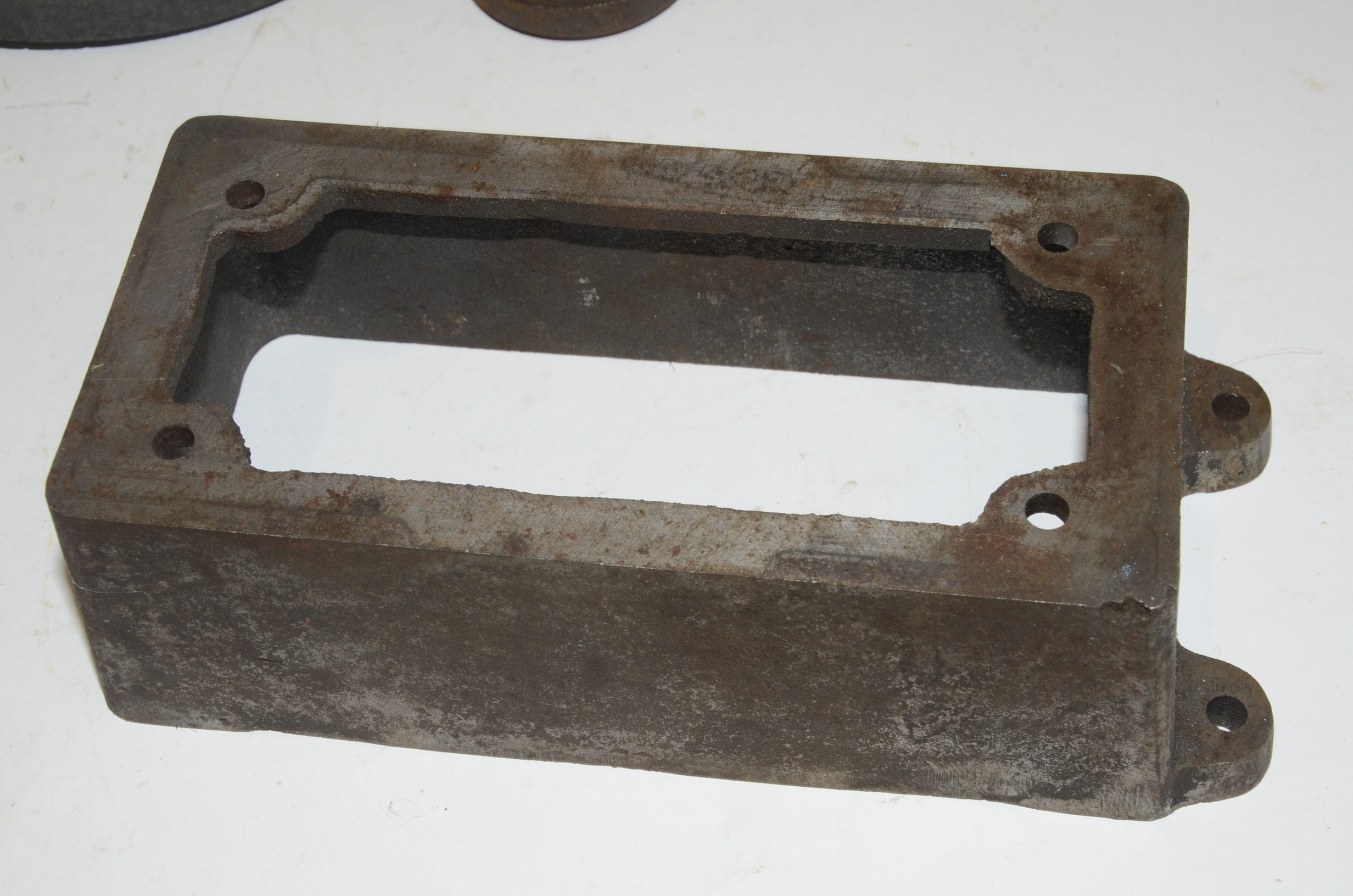

There is some working started but nothing major. The sheet of clading steel has creases on the left hand side corners, as shown above. There are no nuts/bolts/studs. One tiny casting error (easily filled) on one corner of the base.

Good to have the older castings. Looks to be complete and when I acquired the group of castings they were all together in a closed box. Do check the photos.

Price:  £ 495 (Current RRP from Reeves is £722) (No additional VAT to add)

BOTTOM PHOTOS:

Looks to be a complete set but please check photos yourself as I might have missed something. In fact there seems to be a couple of duplicate castings. There are no nuts/bolts/studs, well just a few, but you will probably need a set.

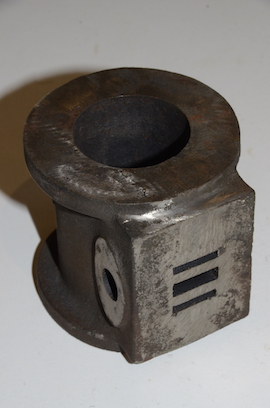

Good to have the older castings. The cylinder has had an initial bit of machining to one end edge, see photos, and the bottom bearing inserted into the base for the crank.

Price:  £ 695 (Current RRP from Reeves is £1050 = (£722 (castings) + £182 (Revesing) + £81 (Drain cocks) + £65 (lubricator))) (No additional VAT to add)



Happy to consider a loco, traction, or stationary/marine/aero engines as a part exchange.

Click here to go back to 'Steam Engine' Menu



Call Howard on 01225 812155 or 07753 610420
Alternatively email:   sales@myford-lathes.com
