Myford



main Rishton milling machine Myford for sale head Rishton milling machine Myford for sale
front Rishton milling machine Myford for sale table Rishton milling machine Myford for sale
speeds Rishton milling machine Myford for sale quill Rishton milling machine Myford for sale
left Rishton milling machine Myford for sale handle Rishton milling machine Myford for sale
head Rishton milling machine Myford for sale cabinet Rishton milling machine Myford for sale
power feed Rishton milling machine Myford for sale column Rishton milling machine Myford for sale

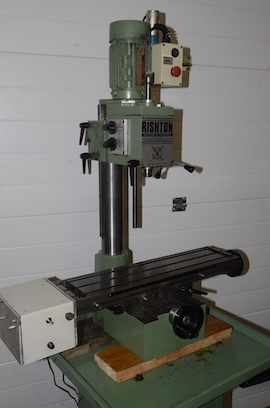

A very good Rishton milling machine for sale. Perfect partner for a Myford lathe for any model engineer.

Very rarely come up for sale so please do call to avoid disappointment.

Imperial machine. Single phase.

Power feed unit is a home designed one. Can be removed and returned to original if required. We have the end plate and fixing screws.

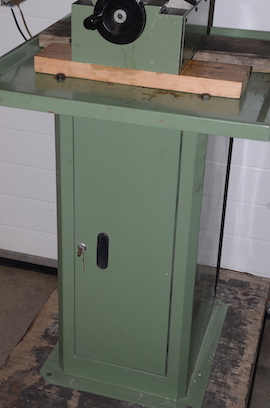

Cabinet available if required, see photo. I think this is a Warco milling machine cabinet & drip tray but will do the job well. Cabinet comes with keys for the lockable door.

With the myford threaded spindle, ideal for the Myford collet system, and the easy to operate side vertical column handle makes this mill a class act in my opinion. Compact and capable machine, this would shine in anyones workshop.

As you can see from the photos this mill has had some overspray to the sides of the head from its previous workshop. Could be repainted to improve the looks but not necessary.

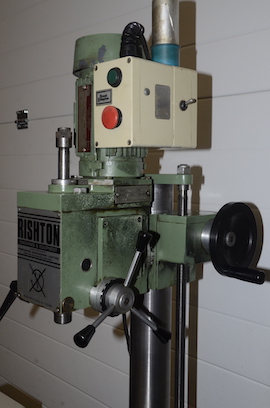

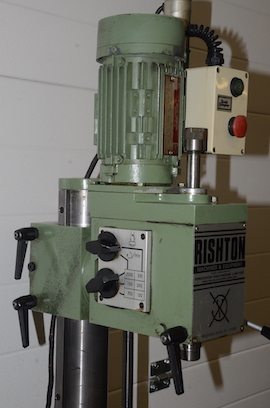

Gear driven head, single phase, drill and mill with the quill head or mill option. Head swivels but +/- 90 degrees and the column rotates by +/- 180 degrees.

MT2 spindle.

Table size for this model is 615mm x 150mm, with 380mm & 140mm travel.

Vertical capacity is 365mm, with stroke of quill 40mm.

Throat depth is 163mm.

Speeds are 130, 200, 370, 700, 1100 & 2000 rpm.

Price:  £ Just arrived, please call for price & info. (no additional VAT to add)
