Myford



right Cowells type 8-MD pillar drill bench drilling. left Cowells type 8-MD pillar drill bench drilling.
top Cowells type 8-MD pillar drill bench drilling. rack Cowells type 8-MD pillar drill bench drilling.
pulley Cowells type 8-MD pillar drill bench drilling. pulley2 Cowells type 8-MD pillar drill bench drilling.

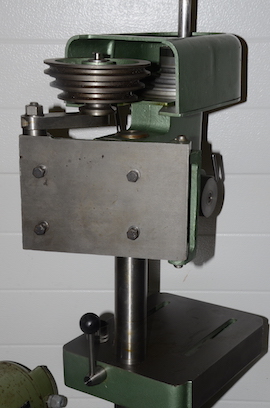

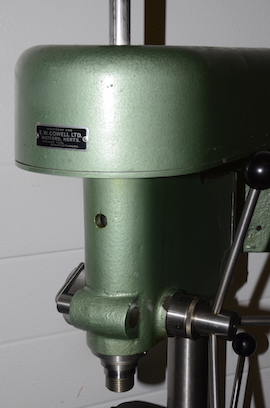

head Cowells type 8-MD pillar drill bench drilling. motor plate Cowells type 8-MD pillar drill bench drilling.

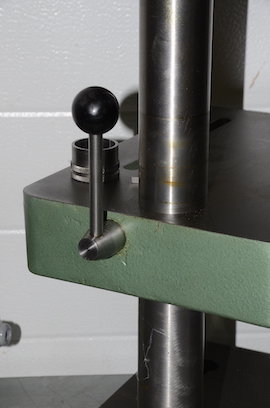

table Cowells type 8-MD pillar drill bench drilling. base Cowells type 8-MD pillar drill bench drilling.
clamp Cowells type 8-MD pillar drill bench drilling. back Cowells type 8-MD pillar drill bench drilling.
column Cowells type 8-MD pillar drill bench drilling. side Cowells type 8-MD pillar drill bench drilling.
motor Cowells type 8-MD pillar drill bench drilling.

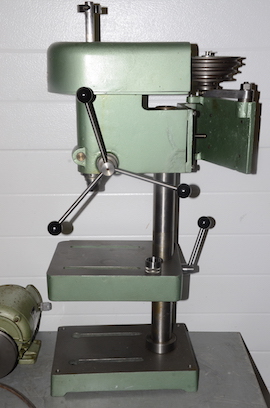

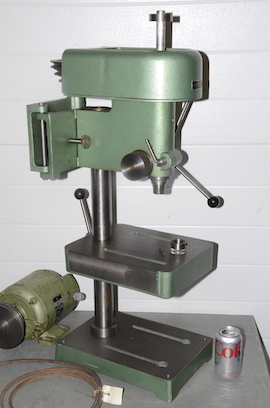

A stunning condition Cowells 1/2" capacity 8-MD pillar drill for sale. Owned from new and in unused condition. Not sure how many are made but I don't think I will come across another in such great condition as this. Single phase motor that will need a switch. The 3 belts for the 3 pulleys are present.

We also have two 3/8" Type 6-MD versions, see both of these on one of my other web pages.

The 8-MD has the additional pulley to enable 6 speeds, rather than just 3.

There is a threaded spindle, the same thread as the Myford Super 7, ML7 & ML10 lathes.

For the model engineer who likes quality items.

Approx dimensions for the 1/2" 8-MD:

  • 5.5" throat.
  • 9.5" max depth of chuck to table.
  • 12.5" max depth of chuck to base.
  • 2" diameter of column.
  • 9.5" x 9" working area of table.
  • 13.5" x 9" area of base
  • 3" quill travel, feed of drill.
  • 34" overall height.
  • resettable dial for quill
  • 0-1/2" Jacobs chuck with key.
  • 6 Speeds: 150, 466, 700, 450, 1400, 2100rpm.
  • Weight , less motor is 107 Lbs.

There is a chip out of the motor pulley, that could be repaired with an infill piece.



Price: £ 1795. (no additional VAT to add)
