A very good Startrite Mercury MK2 Bench mountable pillar drill for sale. With a quality Rohm chuck and key. Good condition tabel with just a couple of drill holes. This drill has been privately owned.

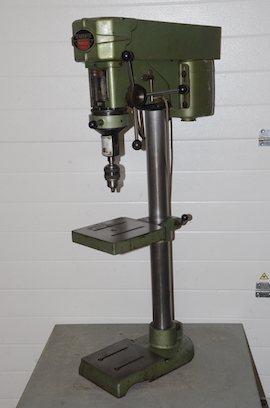

It is shown above at its highest setting, but the head can drop down 120mm before revealing the column.

This drill has excellent capability with a good throat of 170mm.

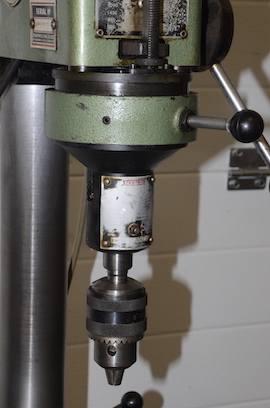

Has the very desirable epicyclic speed reduction unit that enables this pillar drill to have 10 speeds.

Specification:

  • 1170mm tall at highest setting.
  • 1050mm tall to top of column when head is lowered.
  • 215mm x 20mm table
  • 170mm throat capacity.

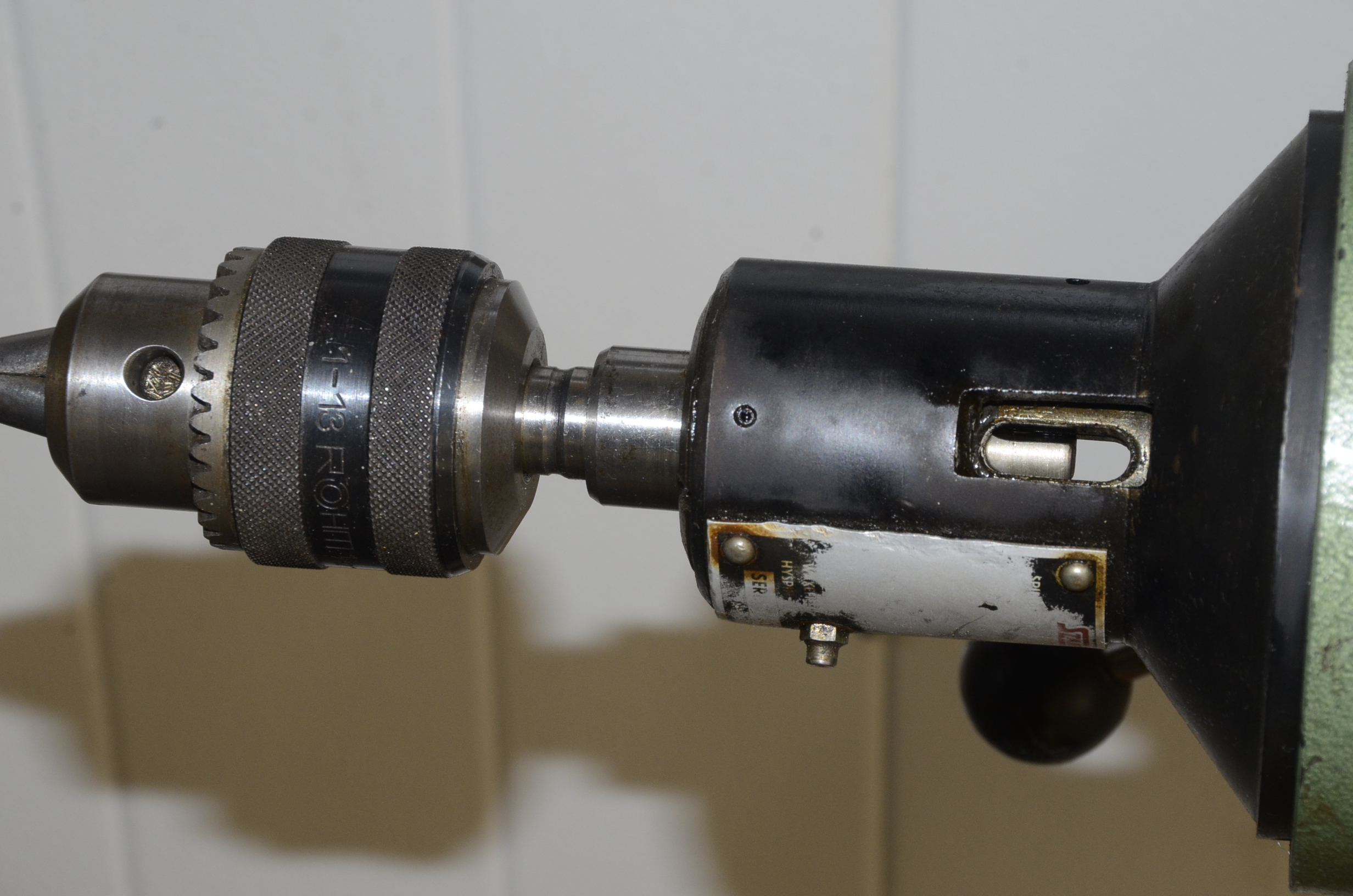

  • Rohn 1/32" to 1/2" chuck with key.
  • Speeds of 530, 890, 1430, 2290 & 3830 rpm
  • Speeds of 95, 165, 265, 430, & 720 rpm using epicyclic speed reduction unit.
  • Quill stroke of 3" (76mm)
  • Spindle on MT2 so chuck on it's MT2 arbor can be drifted out if needed.
  • Back of motor guard to front edge of base is 570mm.
  • Base is 410mm x 220mm
  • Chuck nose tip down to table (at lowest position) is 450mm
  • Chuck nose tip down to base (with table swung out of the way) is 585mm

Single phase motor.

Price: £ 695. (no additional VAT to add)
